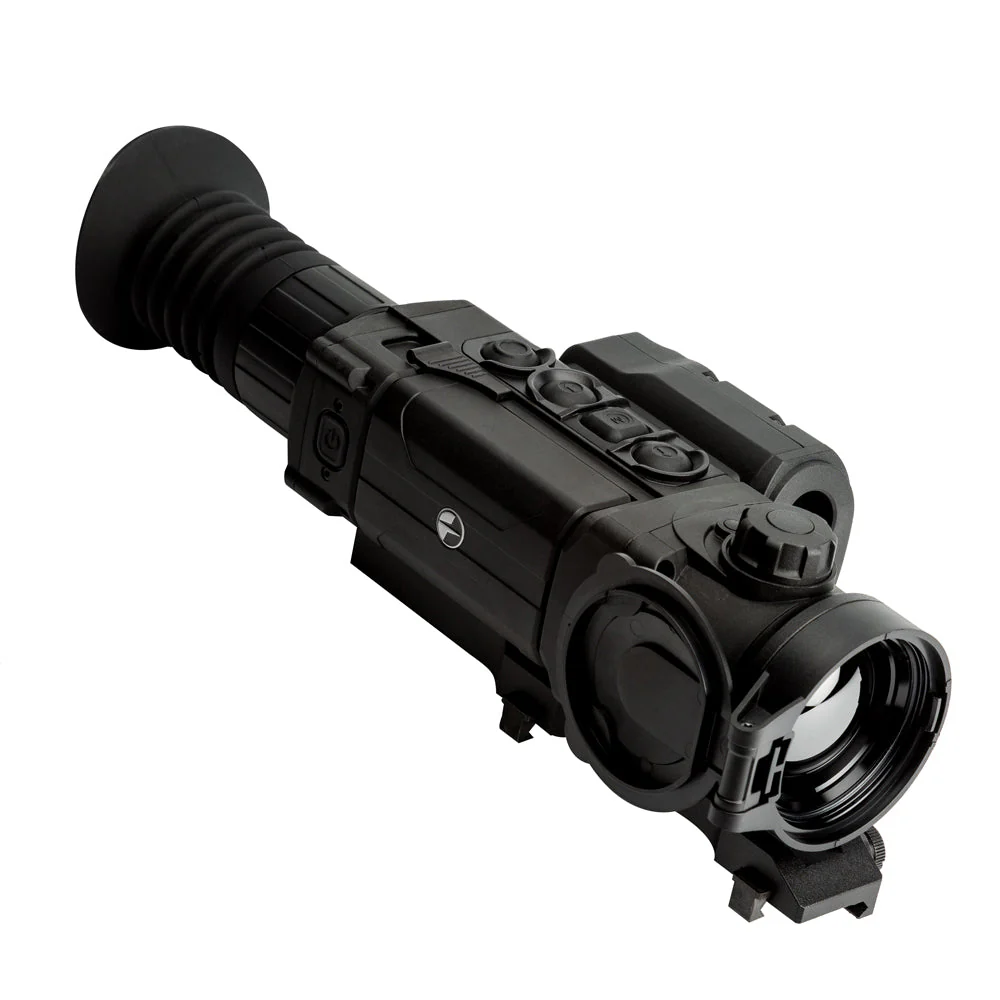

Trail 2 LRF XQ50 Thermal Riflescope

Description

The next generation of thermal imaging sights has arrived with the development of the Pulsar Trail 2 LRF XQ50. Utilizing a highly-sensitive 384x288 thermal sensor, the Trail 2 can distinguish miniscule temperature differences during rain, fog, dark or extremely cold conditions. With a full-color 1024x768 AMOLED display and 3.5x-14x magnification, every tiny detail for up to 2000 yards will appear crystal-clear – and built-in video and still-image recording with 16Gb of internal memory allows users to store footage. Its integrated laser rangefinder is state-of-the-art and features 2 modes: Single Time Measurement and Scanning Mode, allowing the shooter to adjust quickly for changing distances. The Trail 2 also boasts a 3-second startup, variable digital zoom up to 8x, 4 color reticle options, picture-in-picture mode and IPX7 waterproof protection. Additionally, the Trail 2 has Wi-Fi, compatibility with the Stream Vision app, up to 5 zeroing profiles and a recoil rate up to .375 H&H, 12-gauge and 9.3x64. For a reliable, high-tech thermal scope, the Trail 2 XQ50 from Pulsar is the best in the business.

Included in Package

• Battery pack
• Battery pack charging kit
• USB cable
• weaver/picatinny rail
• Cleaning cloth
• Carrying case
• Hex wrench

Battery Used

• Type: B-Pack (Li-Ion)
• Quantity: 1

Product Downloads

• Product Manual
• Reticle Catalog
• Product Information
• Product Specifications

Features

• 384x288 resolution - 17um pixel pitch core
• Highly sensitive thermal sensor <40mK NETD
• High definition image
• Built-in precision laser rangefinder
• Shockproof magnesium alloy housing
• Full-color HD AMOLED Display
• Built-in photo and video recorder
• 16Gb Internal memory
• Detection range up to 2000 yd
• 13 variable electronic reticles
• Instant 3 second start-up
• Zeroing profile management
• Variable digital zoom
• Picture-in-picture mode
• Stream Vision app integrates with IOS and Android devices
• Eight Color Palettes

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Frame Rate, Hz	50
Microbolometer Resolution, pixels	384х288
Type of Microbolometer	Uncooled Microbolometer
Pixel Pitch, µm	17
Display Type	AMOLED
Display Resolution, pix.	1024x768
The Operation Modes	Rocks, forest, identification
Defective Pixel Repair Option	Yes
Integrated Wi-Fi	Yes
Stream Vision support	Yes
Integrated video recorder	Yes
NETD, mK	<40
Magnification	3.5-14
Digital Zoom	2x/4x
Lens diameter, mm	42
Lens Focus, mm	50
Relative aperture, D/f'	1:1.2
Field of view, m@100m	13.1
Field of view, ft@100yd	39.3
Field of View, degrees	7.5
Focusing Type of Distance	Objective
Eye relief (in/mm)	2 /50
Minimum focusing distance, ft/m	16 / 5
Range of Detection	2000 / 1800 yd / m
Laser Wavelength, nm	905
Measurement Range, yd/m	1100 / 1000
Accuracy of Range Measurement, yd/m	+-1
Battery Type	B-Pack (Li-Ion)
Power Supply	3.0 - 4.2
Battery life, (with video out off), hours	8
External Power Supply	5V - Micro USB
Click value, 1 click	13 (mm@100m)
Windage & Elevation. adjustment range, mm	2600/2600 (mm@100m)
Reticle, Type	Variable electronic reticles
Number of Preloaded Reticles	10
Material, Lens	Germanium
Body Material	Magnesium Alloy
Type of Mount for Attachment of Additional Accessories	weaver/picatinny rail
Operating Temp,?F/?C	-13 to 122 / -25 to +50
Level of Protection (acc. to IEC 60529)	IP67 100% dustproof and submergible to 1m for 1 hour
Calibration	manual, automatic, semi-automatic
Recoil Rating	.375 H&H
Waterproof	Yes
Weight, oz	25 (without batteries and mount)
Length (in/mm)	11.22 / 295
Width (in/mm)	4.01 / 102
Height (in/mm)	2.99 / 76
