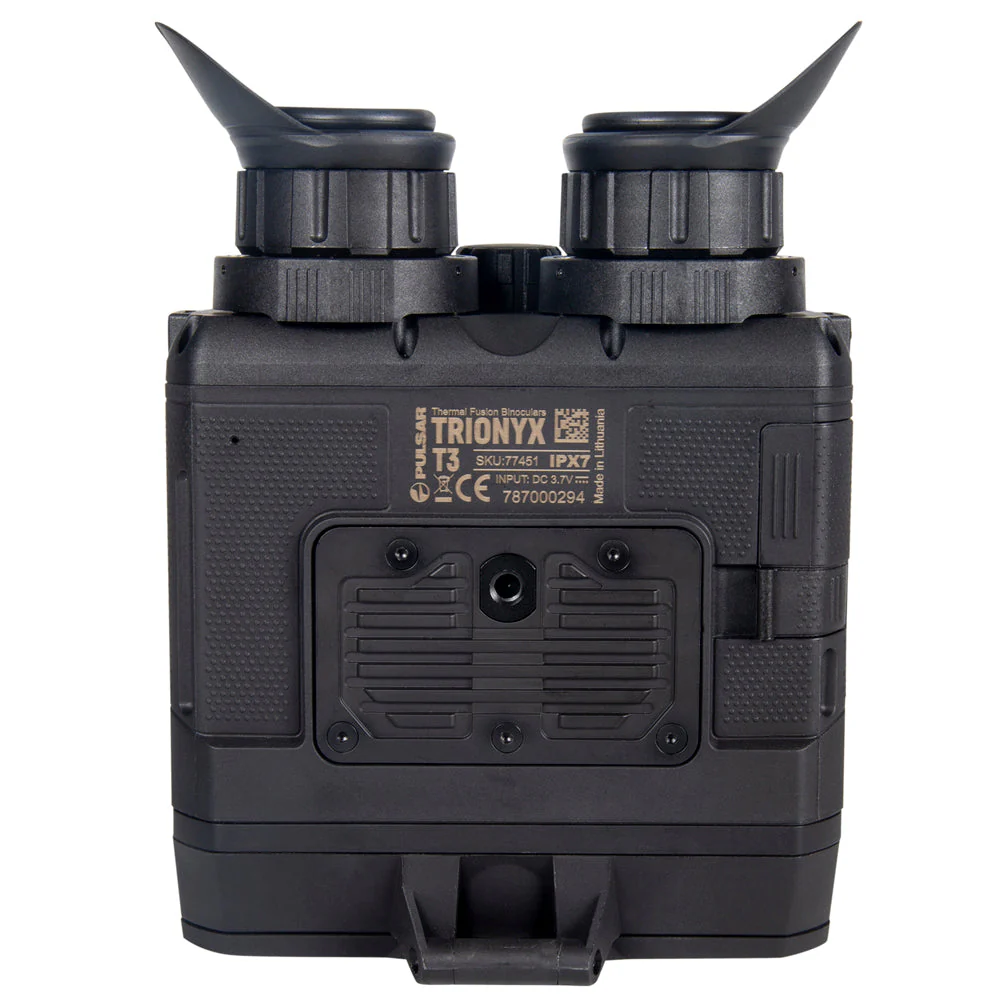

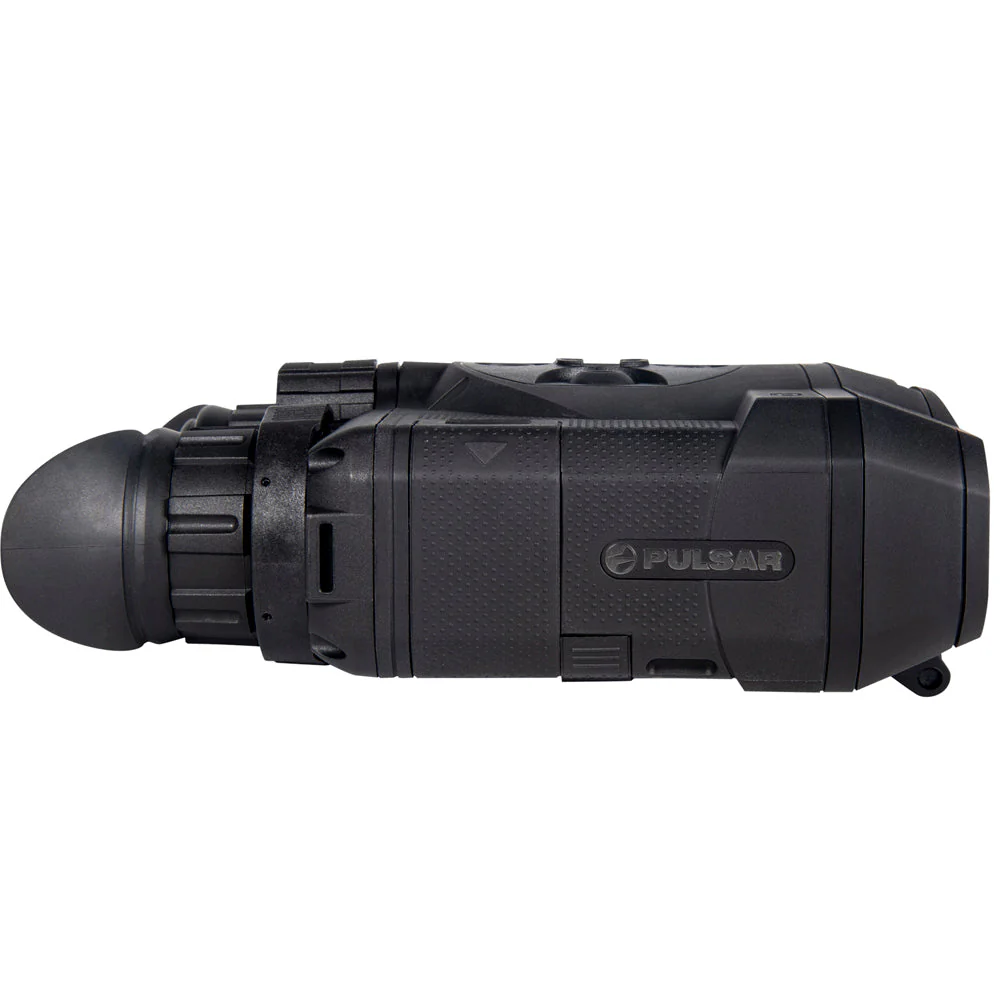

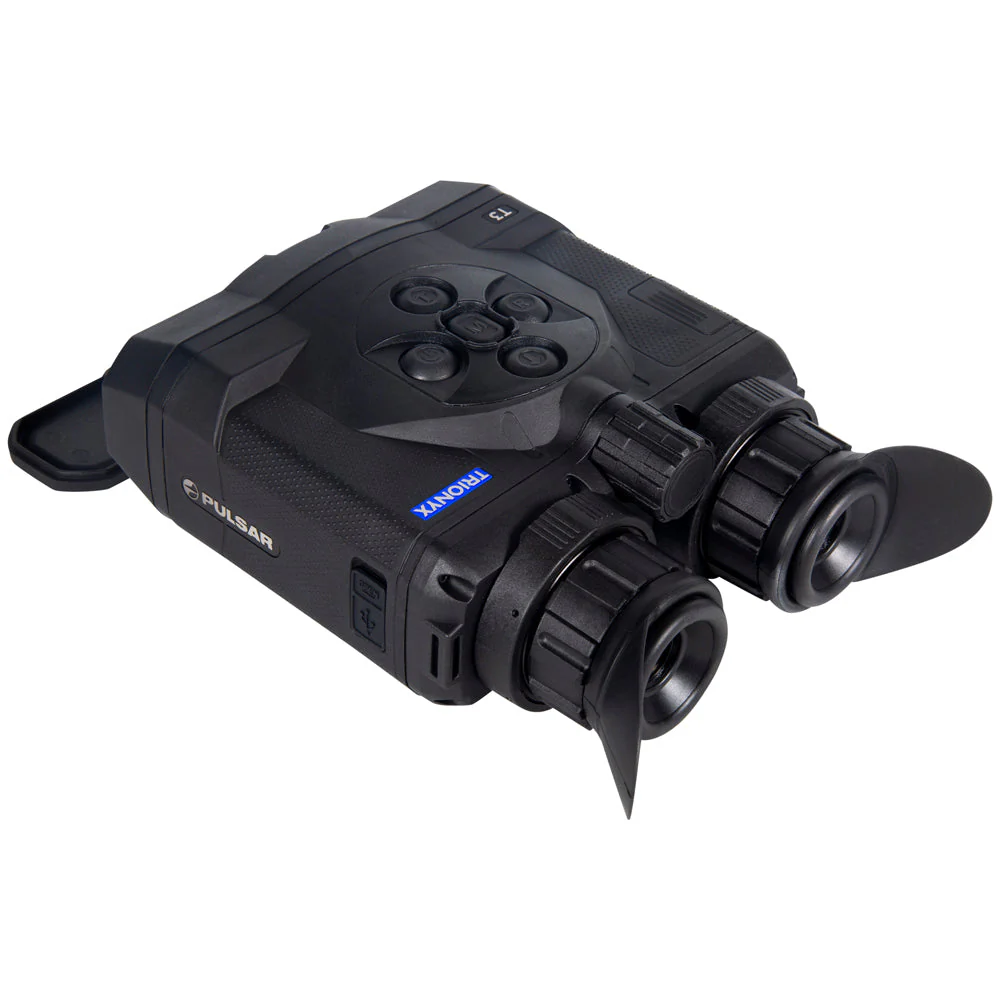

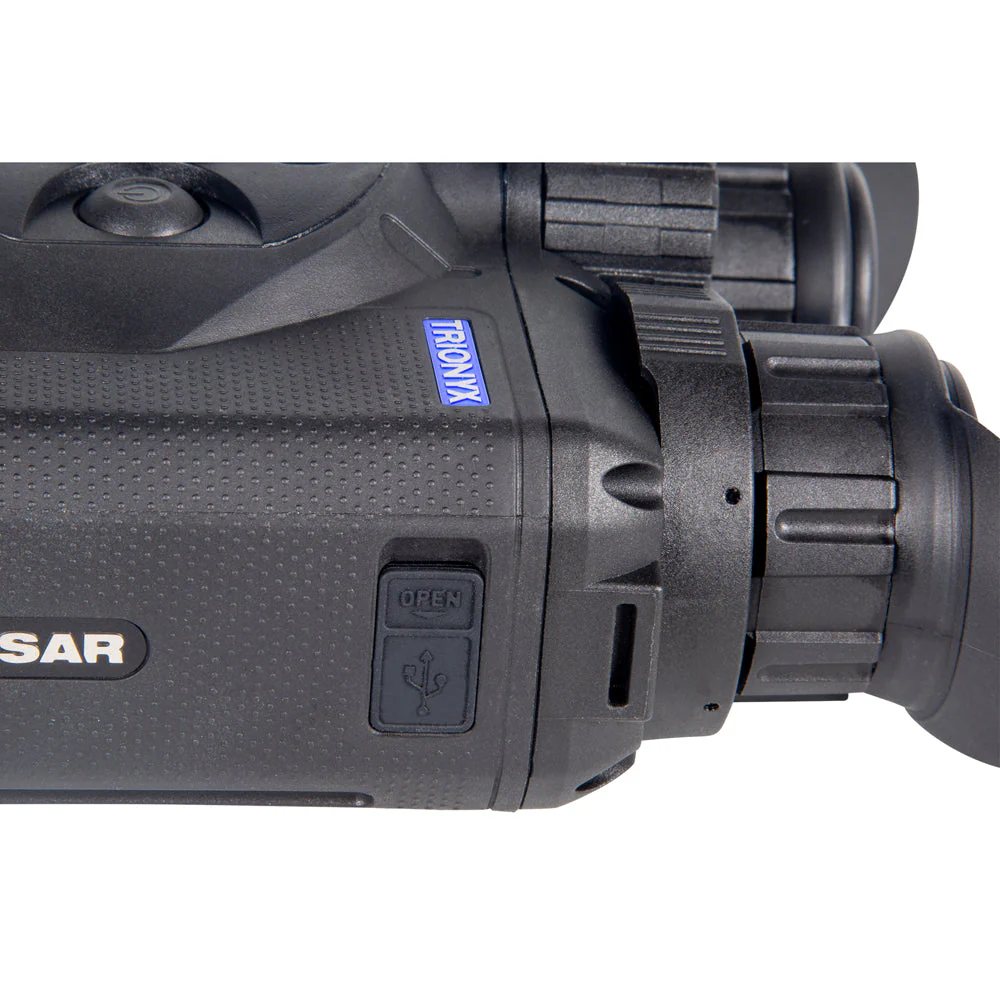

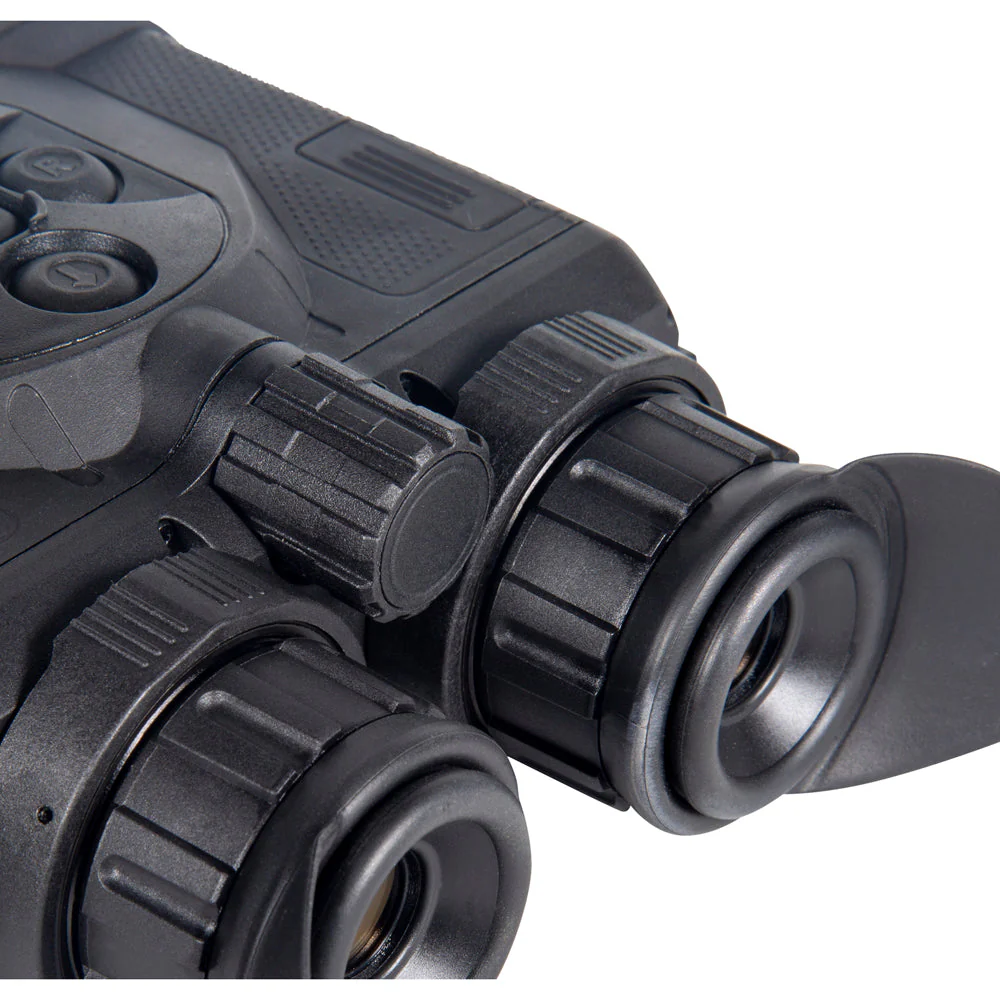

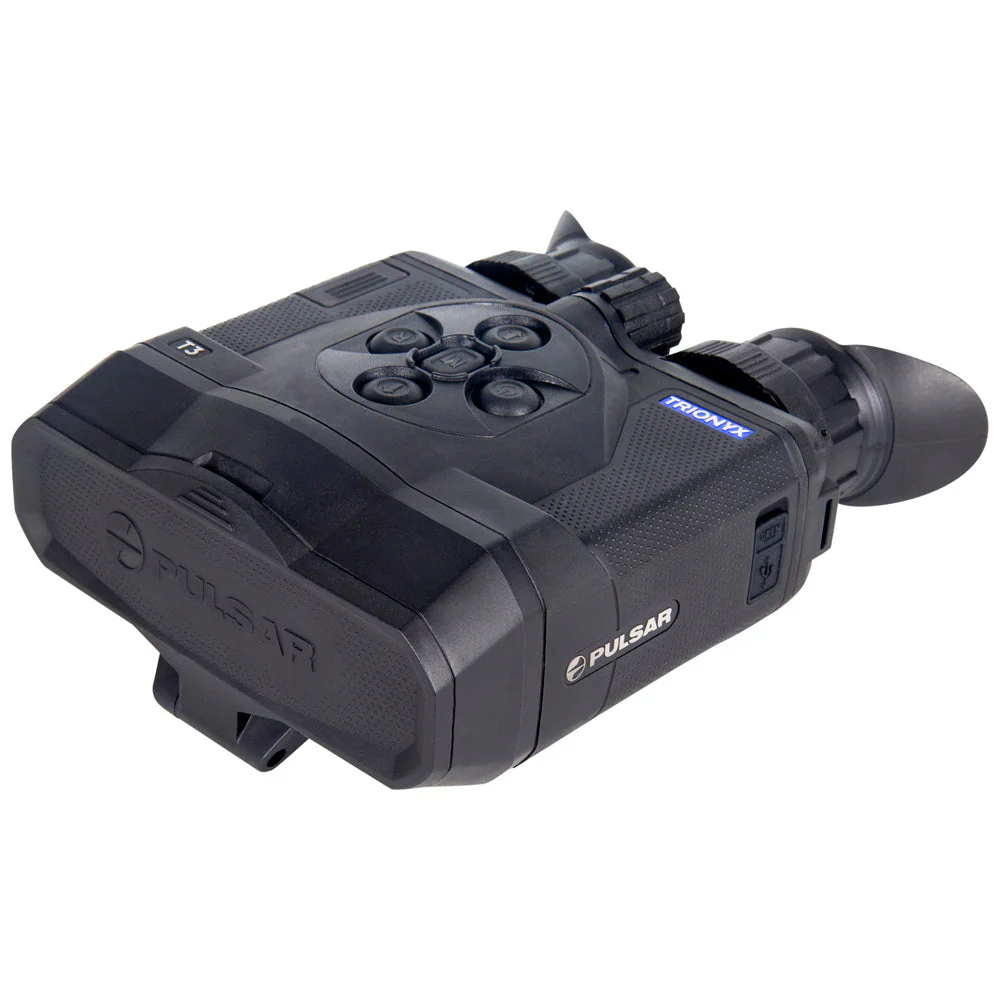

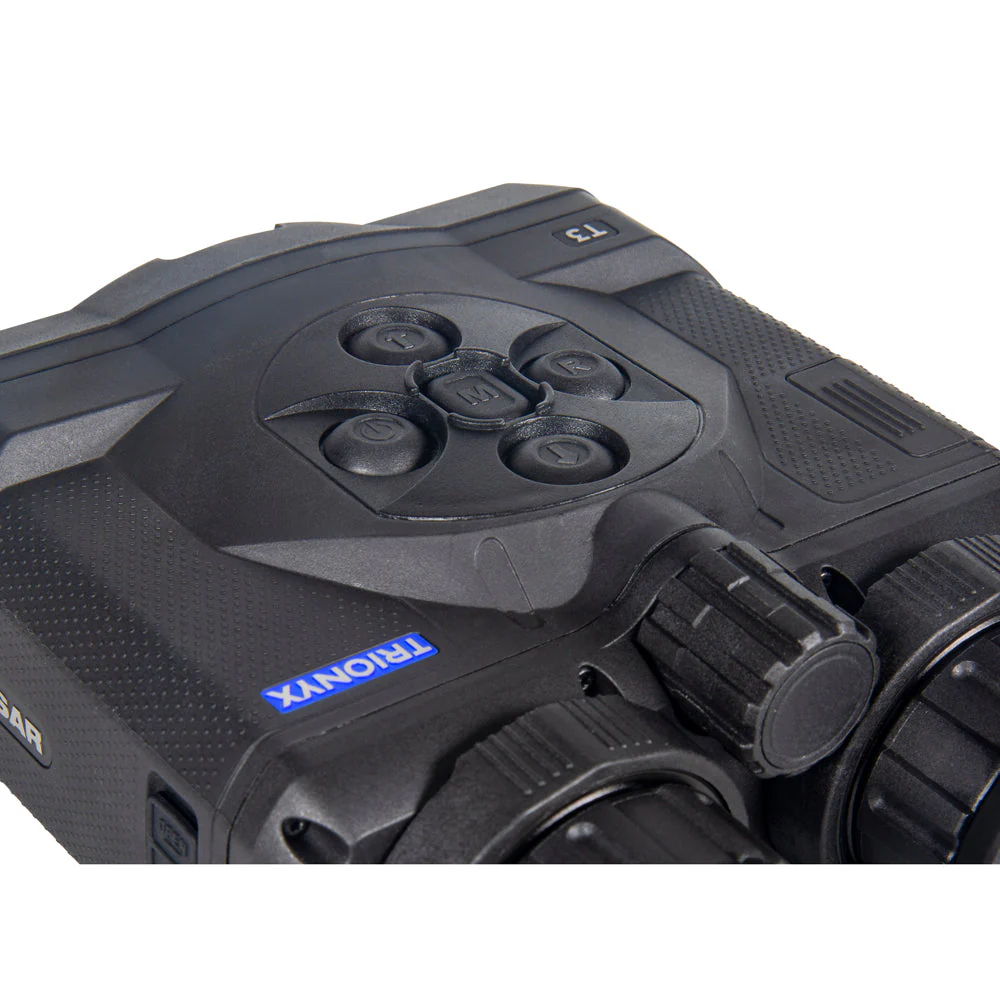

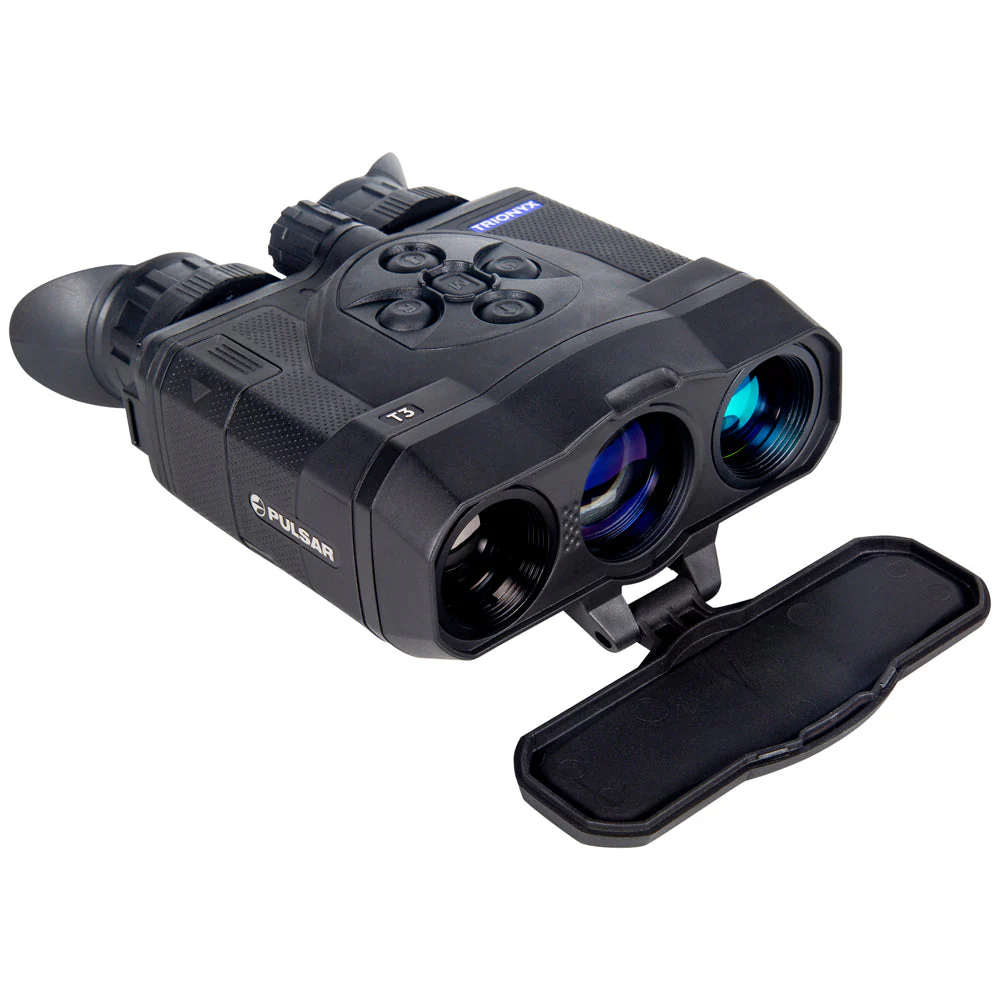

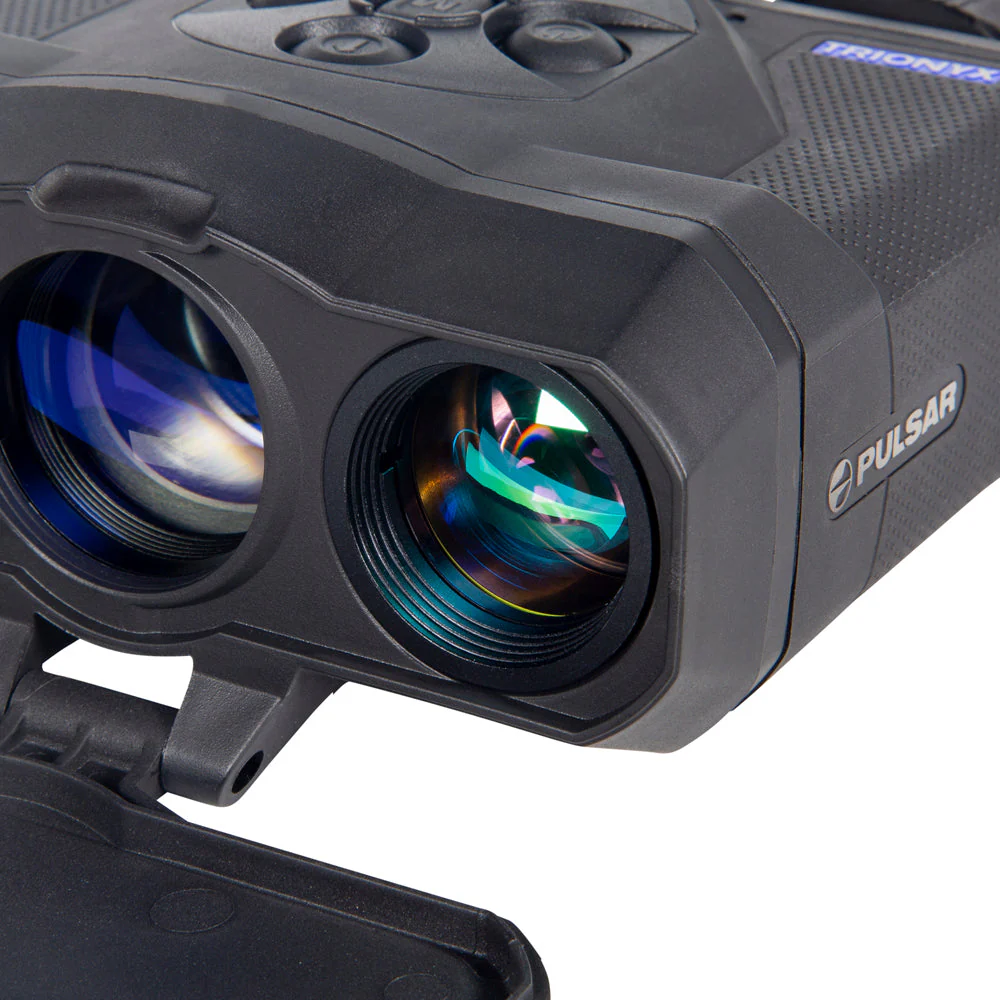

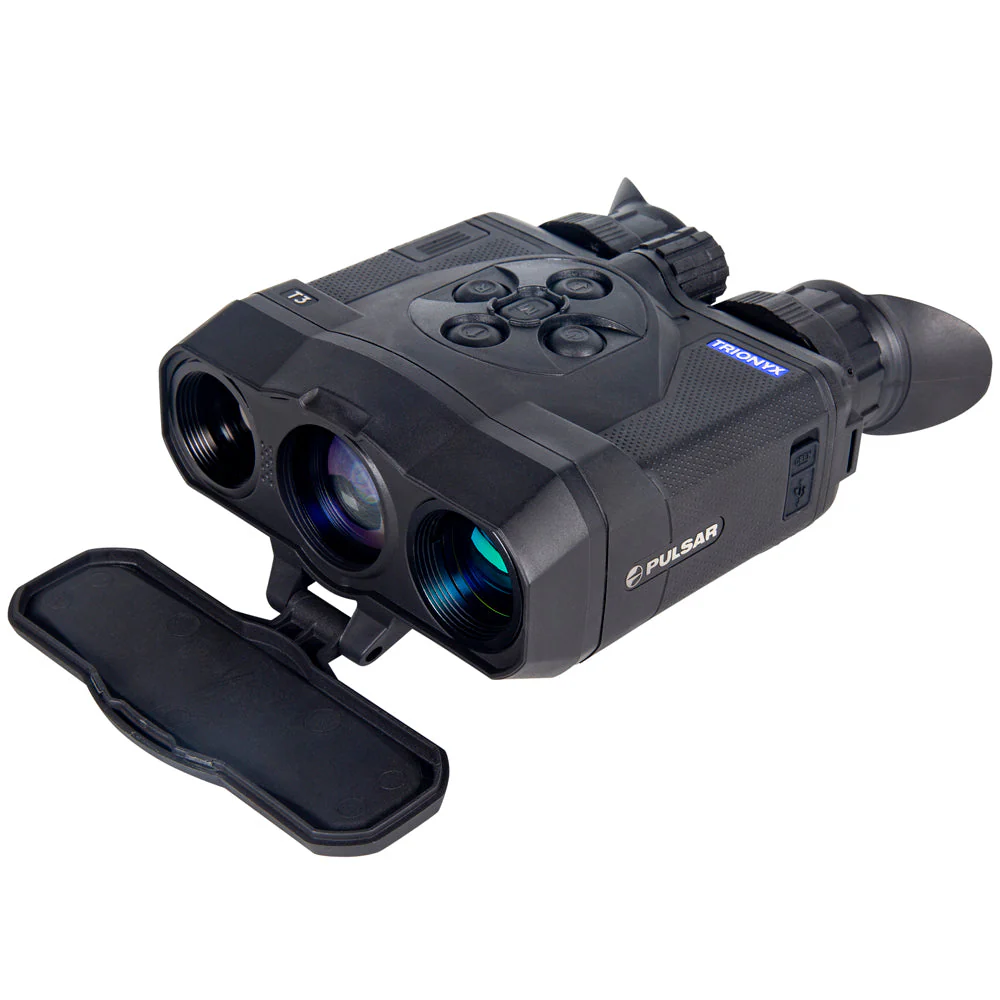

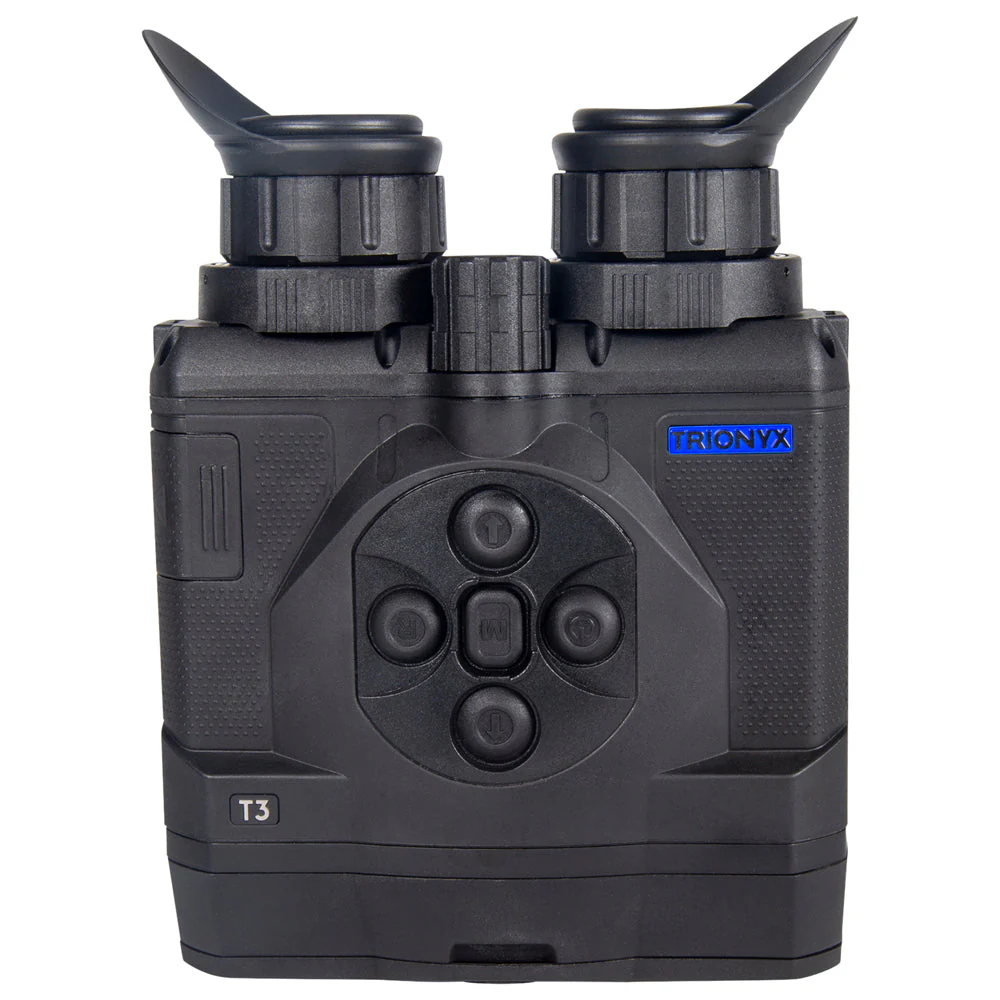

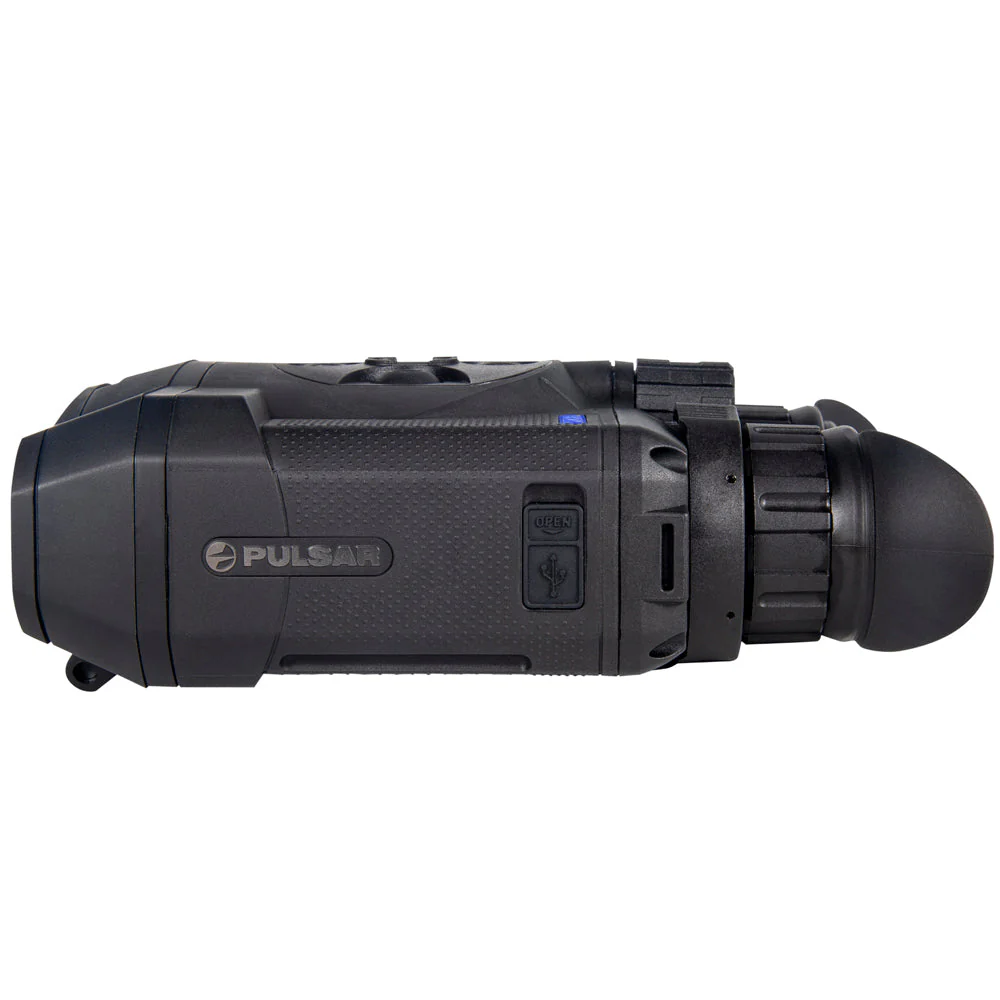

Trionyx T3 Multispectral Binoculars
Description
Trionyx multispectral binoculars are a massive technological innovation – thermal and digital night vision imaging combined in a single unit. Trionyx binoculars boast the detection range of a fixed focus 384x288 thermal sensor—over 1,000 yards—while also maintaining the target-identification capability of focusable digital night vision.
Choose from two models, the T3 includes an 850nm IR Illuminator while the T3i includes the 940nm IR Illuminator. Virtually nothing can escape the Trionyx’s detection.
The Trionyx’s thermal imaging has 2.5-10x magnification, and the digital night vision has 3.5-14x, so users can customize their view on its high-def AMOLED display. Its eight unique color palettes only add to the Trionyx’s distinct versatility.
Beyond the Trionyx’s multispectral capabilities, it is loaded with stunning technological features. Utilizing the built-in video recording, 16GB of internal memory, Wi-Fi connectivity, users can capture, save and share all their exciting memories. Robust and hardy from inception, Trionyx binoculars have a 6-hour battery with the Pulsar TPS7 Li-Ion and an IPX7 waterproof rating.

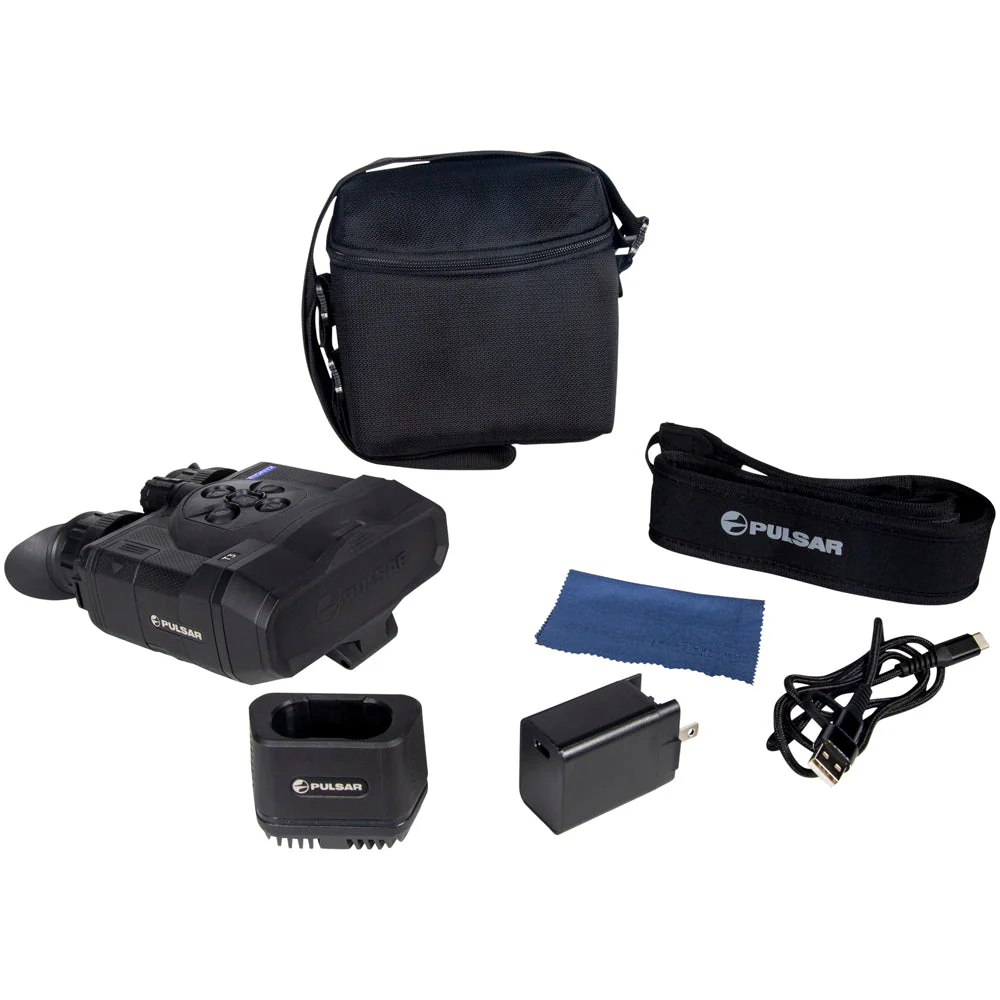

Included in Package
- Multispectral Fusion Binoculars
- Carrying Case
- User manual
- Battery Pack TPS 7
- Lens Cleaning Cloth
- USB Type-C cable
- Neck strap
- TPS7 Battery charger
- 220V USB charger
Battery Used
- T3 Type: 79184 TPS7 Battery Charger
- T3i Type: 79183 Battery Pack TPS 7
- Quantity: 1
Product Downloads
Features
- 384x288 thermal resolution sensor
- 1280x720 AMOLED display
- 1280x720 CMOS Sensor
- 1000yd Thermal Detection Range
- Digital NV Detection Range
- T3 Type: 450yd
- T3i Type: 350yd
- Focusable Digital NV for Positive Target Identification
- T3: Built-in 850nm IR Illuminator
- T3i: Built-in 940nm IR Illuminator
- Built-in Recording & Wi-fi capability
- IPX7 Waterproof Rating
- Functions after being submerged in 1 meter of water for 30 minutes
- Shockproof Glass-Nylon Composite Body
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
| Sensor resolution (pixels) | 384x288 |
| Frame rate (Hz) | 50 |
| Sensor Response | LWIR |
| Pixel pitch (µm) | 17 |
| Display type | AMOLED |
| Display resolution (pixels) | 1280x720 |
| Built-in video recorder availability (yes/no) | Yes |
| Format of video clip | .mp4 |
| Resolution of video clip | 1024x768 |
| Resolution of photo files | 1024x768 |
| Type & max capacity of memory card | eMMC 16 Gb |
| Approximate capacity of memory card (minutes / Gb) | 25min/1Gb |
| Video out availability (yes/no) | NA |
| Type of video output | NA |
| Magnification (x) | Digital Channel - 3.5-14X, Thermal Channel - 2.5-10X |
| IR Illuminator | 850nm |
| Objective lens diameter (mm) | 26 (1in) |
| Digital zoom (x) | 2/4 |
| Lens focus (mm) | 30 (1.2in) |
| Relative aperture (D/f') | F/1.25 |
| Field of view (°, horizontal x vertical) | 9.1 degrees horizontal |
| Field of view (m@100m) | 21.8 horizontal |
| Field of view (yd@100m) | NA |
| Close focus distance (ft./m) | Thermal - Fixed focus, Digital - 5m minimum |
| Eye relief (in/mm) | .59/15 |
| Exit pupil diameter (mm) | 3.5 |
| Diopter adjustment (dptr) | +/-5 |
| Range of detection, (yd./m) (human = 1.7mx.5m) | Thermal - 1000m (1093 yards), Digital - 450m (492 yards) |
| Power supply (v) | 3.7 |
| Battery type | Li-Ion |
| Battery life, w/o IR (hour) | 6 |
| Battery life,with IR (hour) | 4.5 |
| External power supply (yes/no) | Yes - 5V USB Type-C |
| Nitrogen filled (yes/no) | NA |
| Fogproof (yes/no) | Yes |
| Shockproof (yes/no) | Yes |
| IP Standard (water rating) | IPX7 |
| Body material | Glass-Nylon Composite |
| Operating temperature (°F/°C) | -13 to 104 / -25 to 40 |
| Length (in/mm) | 6.5in/165mm |
| Width (in/mm) | 5.2in/131mm |
| Height (in/mm) | 2.6in/66mm |
| Weight (oz.) | 26.81 |
